Model | CLG-600 |
Maximum dehumidification | 600L/day （30℃ RH80%） |
Voltage | 380V～/50Hz/3Ph |
Maximum input current | 20A |
Maximum input power | 12KW |
Circulation volume | 6500m3/h |
Ambient temperature | 5-38℃ |
Static pressure | 80Pa |
Outer diameter of drainage | Φ14mm |

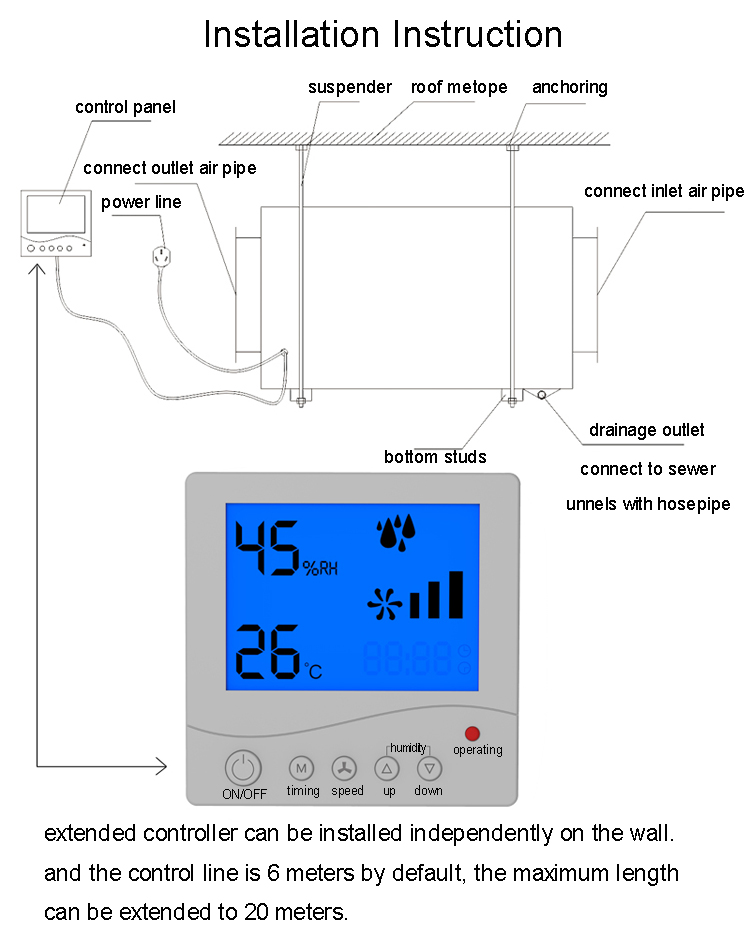

External controller | Box 86,the standard wiring length is 6 meters |
Air inlet and outlet | Front inlet and back outlet |
With or without filter | Primary filter |
Shape volume (width x depth x height) | 1405×1100×715mm |
N.W | 260 KGS |
Recommended apllied area: 500-600m2(height about 3m).
Display mode: Liquid crystal humidity RH10-90% is displayed randomly.
Humidity control: Microcomputer control, humidity 1%, free setting and control (the computer board is equipped with power failure memory function).
Frost function: Microcomputer intelligent control, automatic defrosting, low temperature applicable.
Compressor: International brand low noise reciprocating compressor, low noise, reliable operation.
Power supply: 380V power supply, with the compressor three-minute delay protection, sensor failure indication error code and other devices.
Cooling system: Adopting high efficiency copper clad aluminum sheet heat exchanger, the heat exchanger has compact structure, good pressure resistance and high heat exchange efficiency.
Wind machine design: The air volume is large, the friction is small, the noise is small, the service life is long.
Drainage way: continuous drainage with pipe.
Move mode: A mounting bracket is installed at the bottom (see the back figure).
